Bridgeport CNC Mill - $3,200 (Livonia)

condition: good

make / manufacturer: Bridgeport

model name / number: Torc Cut

size / dimensions: 8 x8 x8

QR Code Link to This Post

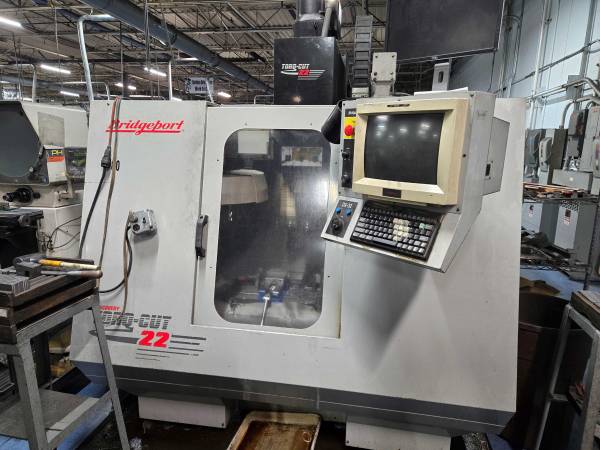

BRIDGEPORT TORQ CUT 22 VERTICAL MACHINING CENTER
1996
S/N TC/22-363

Specification Description
TABLE SIZE 32" x 16"
SPINDLE NOSE TO TABLE TOP 4.33" TO 24.33"
X-AXIS TRAVEL 22"
Y-AXIS TRAVEL 16"
Z-AXIS TRAVEL 20"
AUTOMATIC TOOLCHANGER 22 POSITIONS
THROAT DEPTH 17.7"
SPINDLE TAPER BT-40
SPINDLE SPEEDS (2 GEAR RANGES) 6,000 RPM
X AXIS RAPID TRAVERSE RATE 472 IPM
Y AXIS RAPID TRAVERSE RATE 472 IPM
MAIN MOTOR 7.5 HP
DIMENSIONS 79" x 79" x 96"
WEIGHT 6,500 LBS.
ELECTRICS 208 V / 60 HZ

Equipped With:
DX-32 PC BASED CONTROL WITH COLOR CRT
LINEAR GUIDEWAY CONSTRUCTION
FULL ENCLOSURE WITH FLOOD COOLANT & HALOGEN WORKLIGHT
BT-40 SPINDLE AND TOOL CAROUSEL
