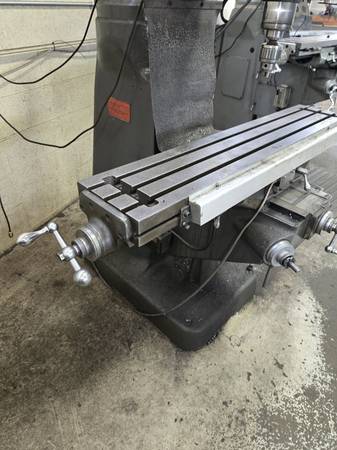

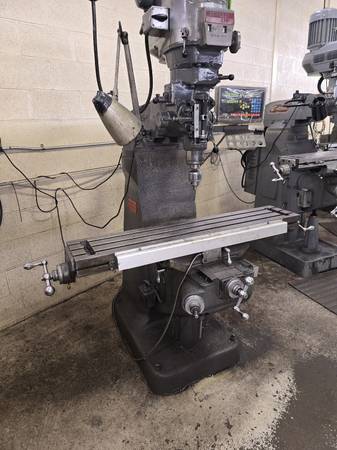

BRIDGEPORT SERIES 1, 2HP MILLING MILL W/ DRO - $3,850 (detroit)
make / manufacturer:
Bridgeport
model name / number:
series 1
QR Code Link to This Post
Table Size: 9″ x 48″
Longitudinal Table Travel: 30″
Saddle Cross Travel: 12″
Knee Vertical Travel: 16″
Spindle Quill Travel: 5″
Ram Travel: 12″
Throat Distance Range: 6.75″ – 18.75″
Table To Spindle Nose Distance Range: 2.5″ – 18.25
Spindle Speeds, Variable: 60 – 4,200 RPM
Maximum Uniform Table Load: 300 lbs.
Power Table Feed Rate: .75″ – 35″/min
220V
3Phase
