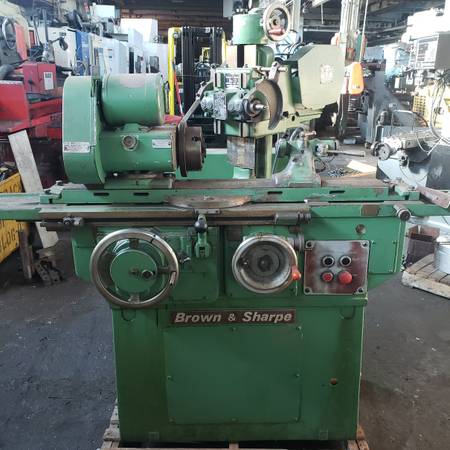

BROWN & SHARPE No 13 TOOL AND CUTTER GRINDER - $3,500 (detroit)
make / manufacturer:
Brown & sharpe
model name / number:
No 13
QR Code Link to This Post
CAPACITY:
– GRINDS WORK UP TO ……………………… 8″ DIAMETER
– GRINDS LENGTH …………………………. 14″
– DISTANCE BETWEEN CENTERS ……………….. 24″
WHEELHEAD:
– STD. GRINDING WHEEL SIZE ……………….. 7″ X 1/2″W X 1-1/4B”
– GRINDING WHEEL SPEEDS (3) ………………. 2730, 3600 & 5150 RPM
– WHEELHEAD TRAVEL ………………………. 8-3/8″
– WHEELHEAD SWIVELS, LEFT & RIGHT …………. 110 DEGREES
– VERTICAL ADJUSTMENT ……………………. 8-3/8″
SWIVEL TABLE:
– ANGULAR SETTING TO LEFT & RIGHT …………. 90 DEGREES
– FINE SCREW ADJ. FOR SETTING TAPERS
UP TO ………………………………. 3″ PER FT.
– TABLE TRAVEL ………………………….. 22″
– POWER TABLE SPEEDS (6) …………………. 7-3/4″ TO 100″ IPM
– TRAVEL PER REV. OF HANDWHEEL ……………. 1/4″ SLOW
6-1/4″ FAST

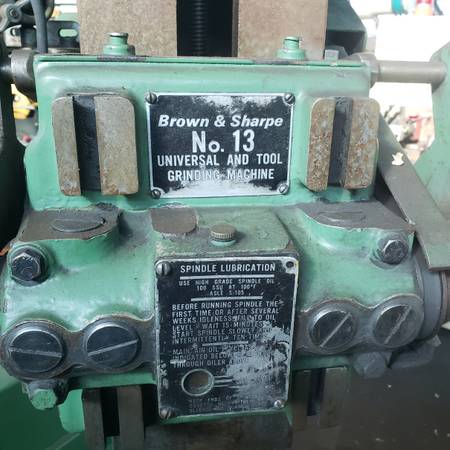

HEADSTOCK:
– SWIVELS LEFT & RIGHT …………………… 100 DEGREES
– SPINDLE SPEEDS (4) …………………….. 128 TO 540 RPM
– SPINDLE TAPER …………………………. B & S No. 7
– TAILSTOCK …………………………….. B & S No. 7
APPROX. DIMENSIONS ………………………. 65″L-R x 55″D x 64″H
APPROX. WEIGHT ………………………….. 2,900 LBS.
