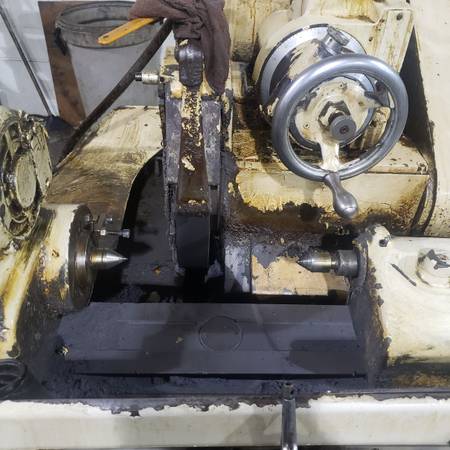

LANDIS 1R UNIVERSAL CYLINDRICAL GRINDER - $2,000 (detroit)

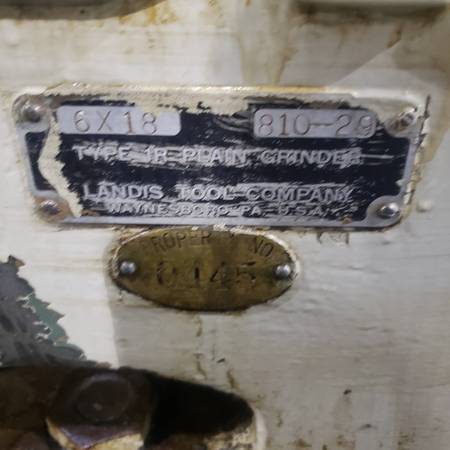

make / manufacturer:
landis
model name / number:
1r
QR Code Link to This Post
SPECIFICATIONS:
Maximum diameter turned 10"
Distance between centers 20"
Swivel table graduated 20 degrees
Traverse speed 2 to 240 ipm
Traverse per turn of handwheel--slow 0.200"
Grinding wheel dimensions 12" x 1-1/2" x 5"
Grinding head swivel--left & right 90 degrees
Work diameter reduction per
revolution of handwheel .100"
Work diameter reduction per
revolution of fine feed knob .001"
Internal spindle speed 16,500 rpm
Workhead speeds--number 6
--range 60, 90, 150, 225, 400, 600 rpm
Headstock swivel--towards wheelhead 90 degrees
--away from wheelhead 30 degrees
Headstock center taper #10 J
Tailstock center taper #6
Wheel drive motor 3 HP
Headstock motor 1/4 HP
Hydraulic motor 1 HP
Internal spindle motor 1 HP
Floor space required 80" x 54"
Machine weight, approx. 4,000 lbs.
Dimensions approx. (L x W x H) 78" x 54" x 66"
